How to Identify Single-Phase or 3-Phase
Read your electrical meter to see if it says single or 3-phase.. Identify a single-phase power supply by a single pole.. Look for 3 poles to identify a 3-phase power supply.
Steps
Read your electrical meter to see if it says single or 3-phase.
Read your electrical meter to see if it says single or 3-phase.

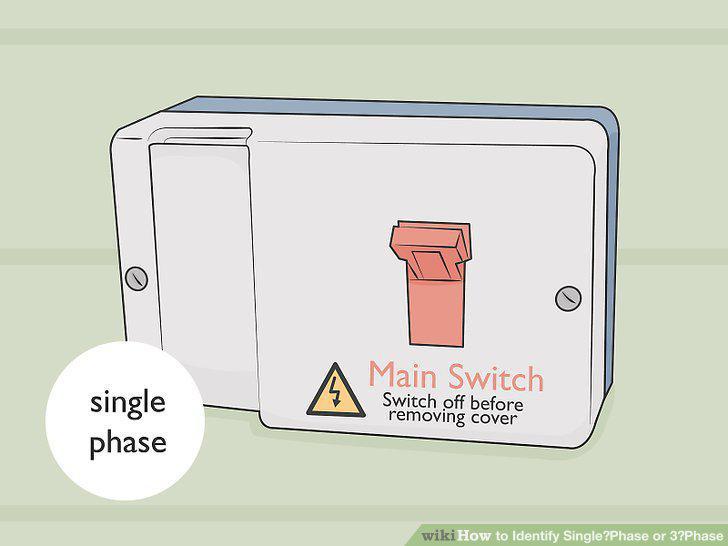

Identify a single-phase power supply by a single pole.
Identify a single-phase power supply by a single pole.

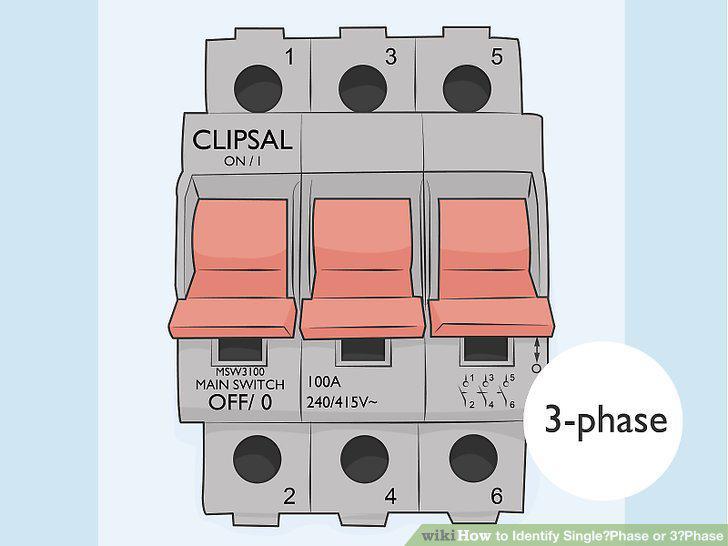

Look for 3 poles to identify a 3-phase power supply.
Look for 3 poles to identify a 3-phase power supply.

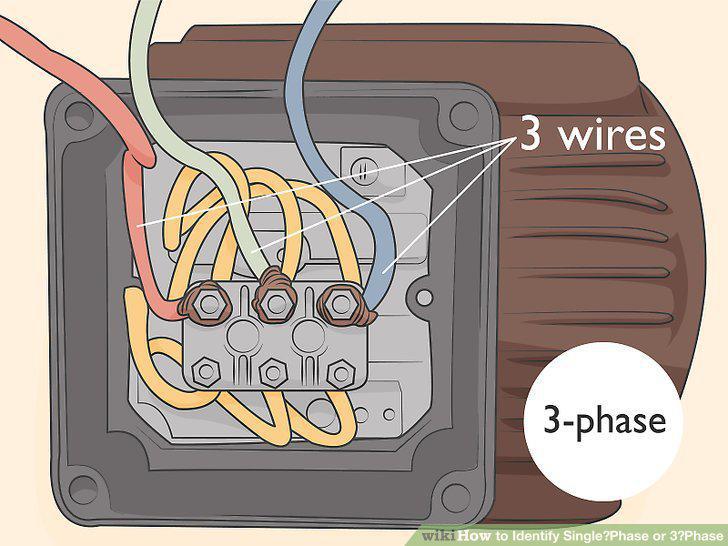

Check for 2 wires for a single-phase or 3-4 wires for a 3-phase.
Check for 2 wires for a single-phase or 3-4 wires for a 3-phase.

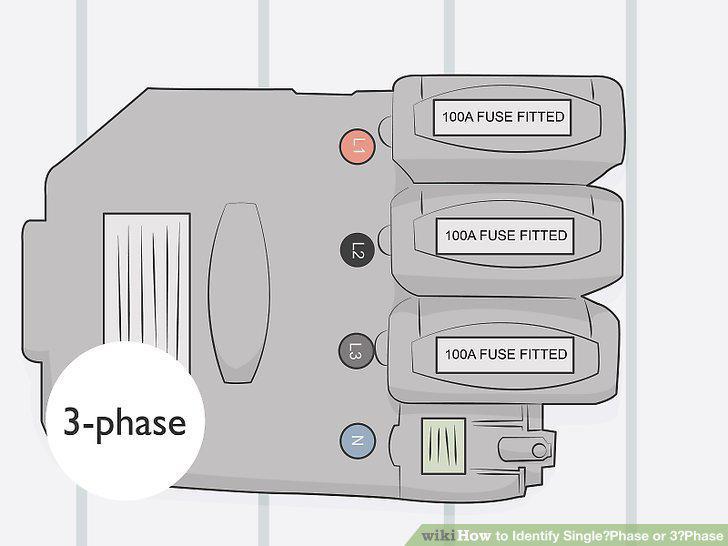

Count 3 fuses for a 3-phase and 1 fuse for a single-phase power supply.
Count 3 fuses for a 3-phase and 1 fuse for a single-phase power supply.

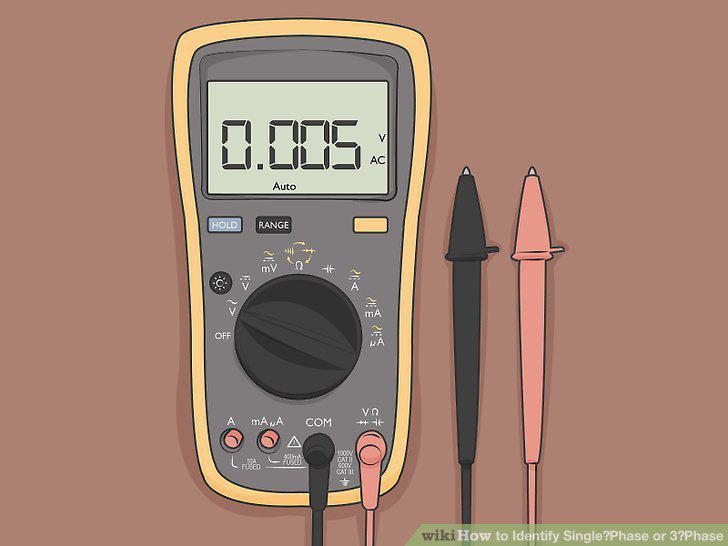

Set a digital multimeter to the AC volts setting.
Set a digital multimeter to the AC volts setting.

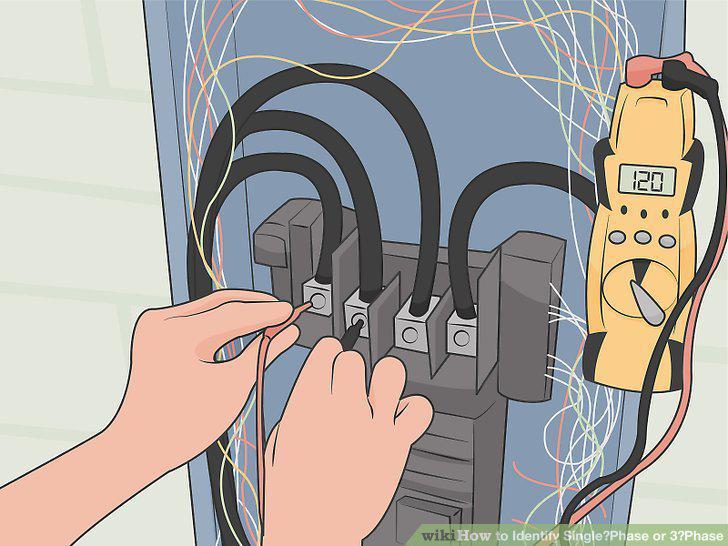

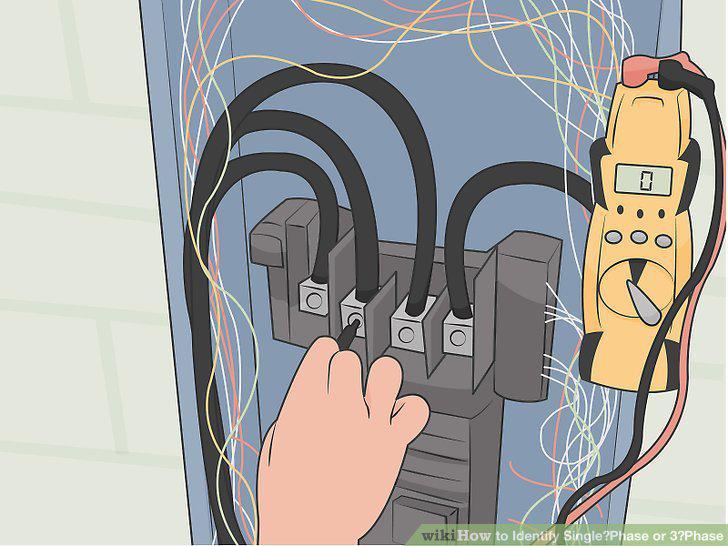

Hold your black lead to the ground wire connector.
Hold your black lead to the ground wire connector.
Touch the red wire to 1 of the hot wire connectors to take a reading.
Touch the red wire to 1 of the hot wire connectors to take a reading.

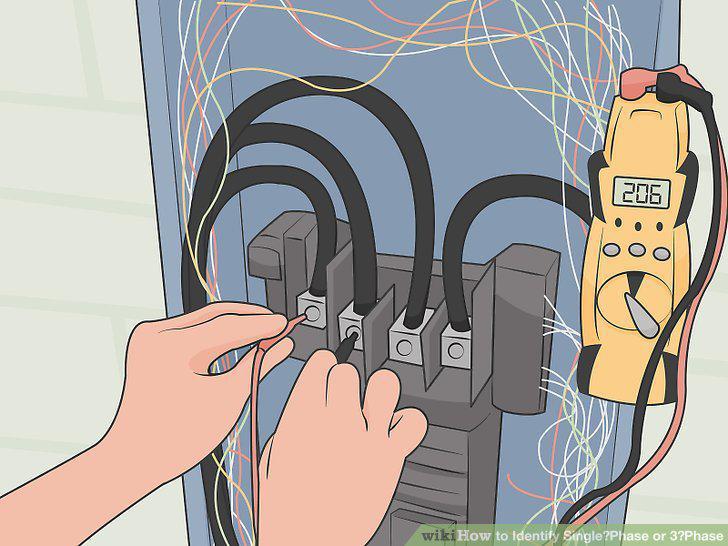

Use your red lead to find 208 volts if you have a 3-phase circuit.
Use your red lead to find 208 volts if you have a 3-phase circuit.

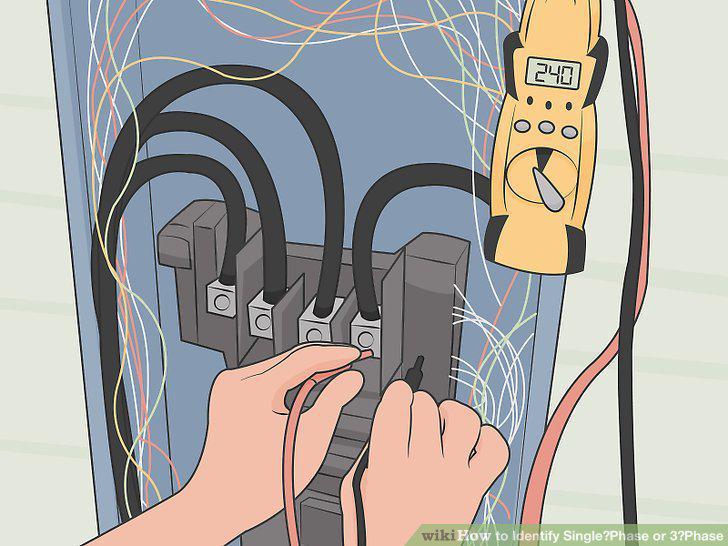

Take a reading of 240 volts for a single-phase circuit.
Take a reading of 240 volts for a single-phase circuit.
