How to Connect Electrical Wire
Carefully remove insulation.. Use only connectors rated for the type wire.. Use correct terminal temperature ratings.
Steps
1
Carefully remove insulation.
Carefully remove insulation.
2

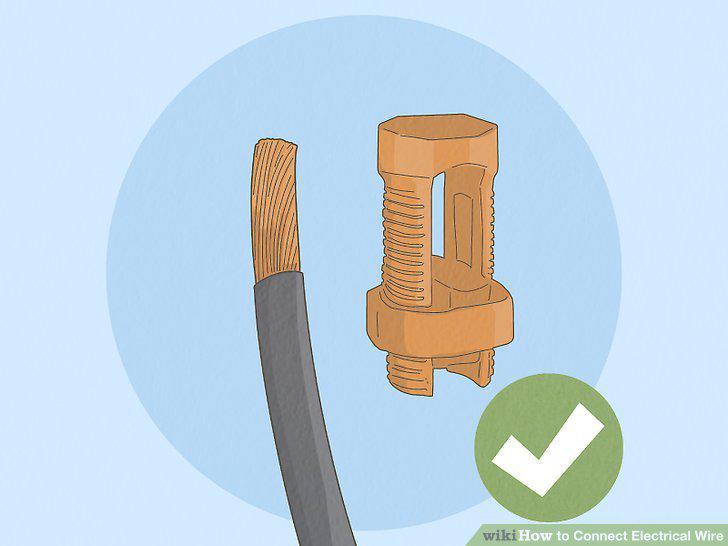

Use only connectors rated for the type wire.
Use only connectors rated for the type wire.
3

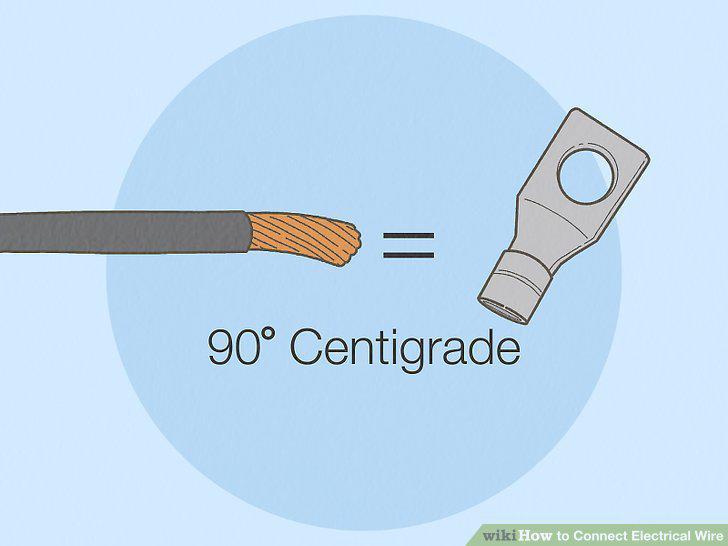

Use correct terminal temperature ratings.
Use correct terminal temperature ratings.
4

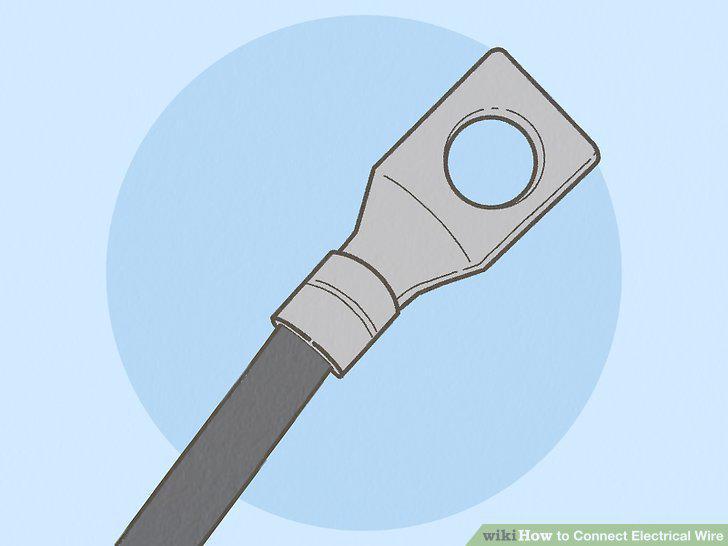

Use terminals rated for the size of the wire(s).
Use terminals rated for the size of the wire(s).
5

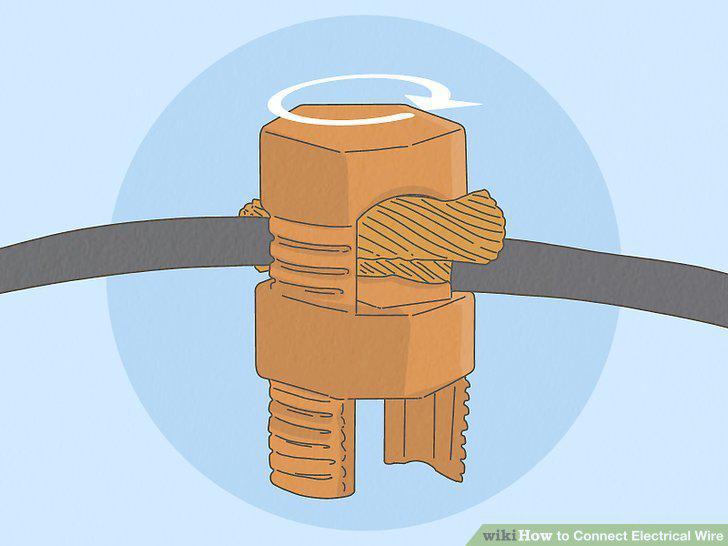

Torque all screws, terminals and lugs to specified rating.
Torque all screws, terminals and lugs to specified rating.
6

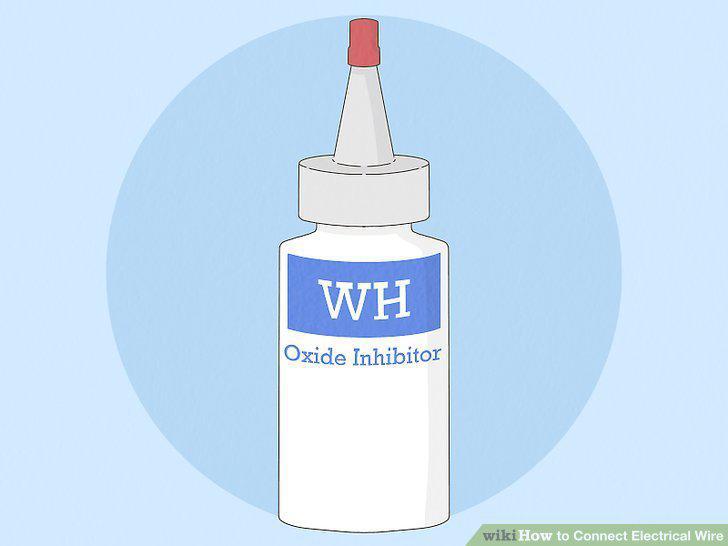

Use an oxide inhibitor on aluminum wires and cables.
Use an oxide inhibitor on aluminum wires and cables.
7

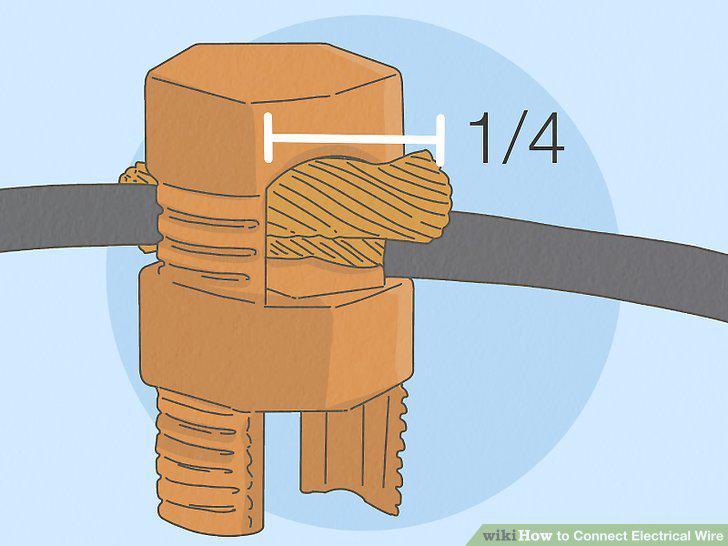

Trim any excess exposed wires as needed.
Trim any excess exposed wires as needed.
8

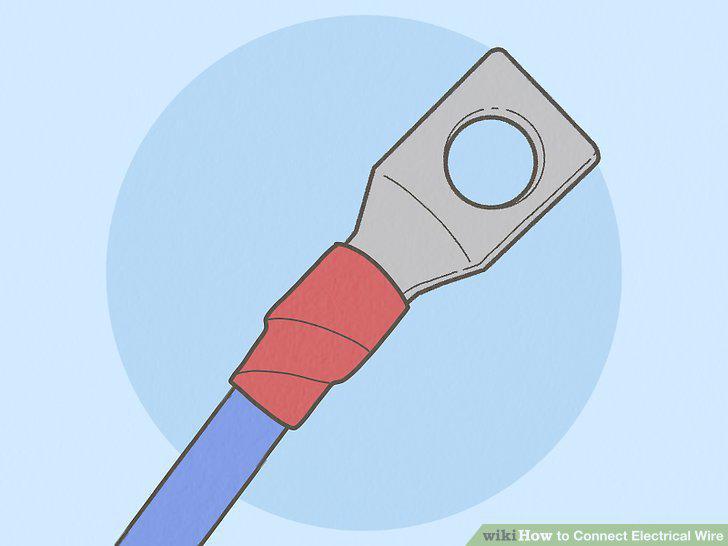

Replace insulation as needed.
Replace insulation as needed.
9

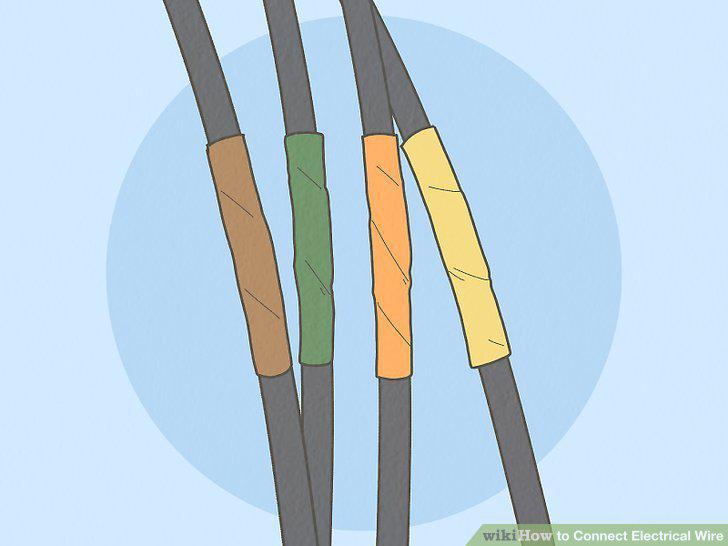

Mark the conductors.
Mark the conductors.
